Easy WireGuard VPN Server for Your Kubernetes Cluster

Want quick, secure VPN access to your cluster—without a dedicated VPS? This guide shows you how to install a WireGuard VPN server inside your Kubernetes cluster (great for accessing Pod IPs, Service IPs, and internal FQDN).

If you’re aiming for production-grade, it’s best to run WireGuard on a separate, dedicated VPS. But for internal or dev environments, this method is perfect.

We will be using the wg-easy helm template

Step 1: Generate a Password Hash

Before installing, generate a bcrypt hash for your WireGuard UI password.

Run this command locally (requires Docker):

docker run ghcr.io/wg-easy/wg-easy:14 wgpw secret
PASSWORD_HASH='$2a$12$j.imiU1h7MBYJ3jVi09SYOpW9TNuPac0xIQ28sASV4KphAOU9n.YO'

Copy the PASSWORD_HASH value—you’ll need it soon.

Step 2: Get Your Node IP and Cluster DNS

You’ll need the external IP of your node (not an internal 10.x.x.x or 172.x.x.x address), and the cluster DNS IP.

Find them using:

kubectl get node -o wide

Next you'll need the DNS service provider of your cluster (mostly coredns, or kube-dns)

kubectl get svc -n kube-system
NAME             TYPE        CLUSTER-IP
kube-dns         ClusterIP   10.43.0.10

Note the EXTERNAL-IP (or INTERNAL-IP, if applicable) of your node.

Step 3: Add the Helm Repo and Create a Values File

Add the wg-easy Helm chart:

helm repo add wg-easy https://raw.githubusercontent.com/hansehe/wg-easy-helm/master/helm/charts

enabled: true
replicaCount: 1

environmentVariables:
  WG_HOST: <your-node-ip>
  PASSWORD_HASH: "<your-password-hash>"
  WG_DEFAULT_DNS: "<your-cluster-dns-ip>"

securityContext:
  capabilities:
    add:
      - NET_ADMIN
      - SYS_MODULE

service:
  type: NodePort
  port: 51820

resources:
  limits:
    cpu: 100m
    memory: 128Mi
  requests:
    cpu: 50m
    memory: 128Mi

volume:
  enabled: true
  size: 100m

Step 4: Install WireGuard with Helm

Deploy into its own namespace:

helm upgrade --install --namespace wireguard --create-namespace wg-easy wg-easy/wg-easy --values ./wireguard.yaml

Step 5: Find Your Service Ports

WireGuard exposes two ports:

• 51820/UDP – the VPN port
• 51821/TCP – the UI port

List services to see which NodePorts were assigned:

kubectl get svc -n wireguard

Example output:

NAME      TYPE       CLUSTER-IP     PORT(S)
wg-easy   NodePort   x.x.x.x        51820:30222/UDP,51821:30223/TCP

Here, 30222 is the public VPN port, 30223 is the public UI port.

Step 6: (Optional) Use LoadBalancer Instead of NodePort

If you have multiple nodes, switch the service type to LoadBalancer in your wireguard.yaml, then redeploy:

service:
  type: LoadBalancer

After deployment, find your external IP with:

kubectl get svc -n wireguard

Update your WG_HOST in the values file to this IP, and re-run the helm upgrade command.

environmentVariables:
  WG_HOST: <ip-of-your-node>

Step 7: Connect!

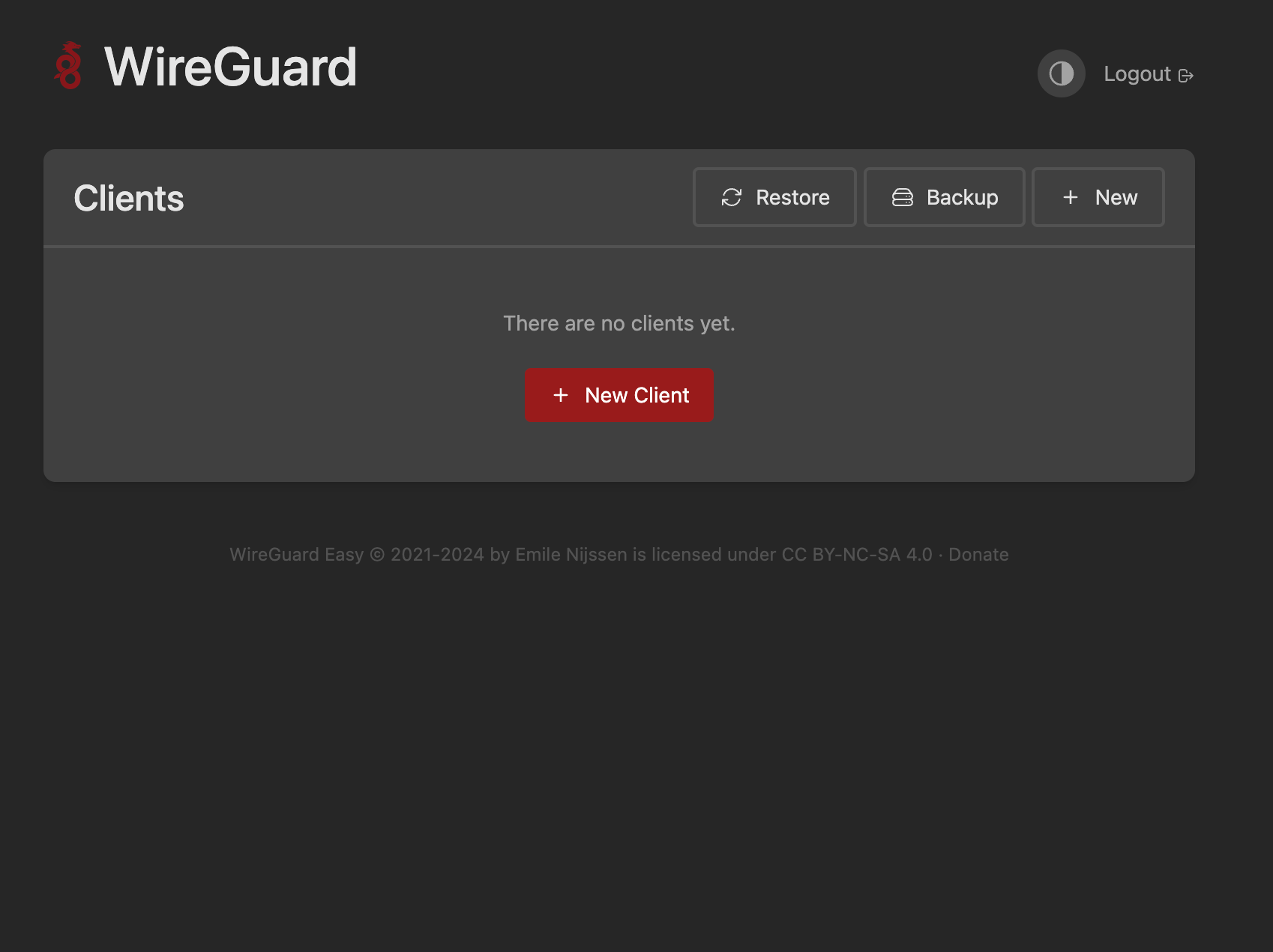

1. Open the WireGuard UI at http://<external-ip>:<ui-port>, log in with your password, and create a client.
2. Download the generated .conf file.

Important:

Update the Endpoint in your client config with the correct public port mapped to 51820/UDP.

For example:

Endpoint = 31.12.282.192:30222

Step 8: Test Your VPN

After connecting, you should have full access to the cluster’s Pod IPs, Service IPs, and FQDN (e.g., http://wg-easy.wireguard.svc.cluster.local:51821/).

This address is the kubernetes FQDN which resolves services inside the cluster, cool right?

Step 9: Secure the UI

For security, restrict the WireGuard UI so it’s not exposed to the public Internet.

kubectl edit svc wg-easy

Find and delete the http-ui port entry:

ports:
  - name: udp-vpn
    nodePort: 30763
    port: 51820
    protocol: UDP
    targetPort: udp-vpn
  # Remove or comment out the following
  - name: http-ui
    nodePort: 30654
    port: 51821
    protocol: TCP
    targetPort: http-ui

Save and exit.

That’s it!

You now have secure VPN access into your Kubernetes cluster—no extra VPS required.

Enjoy full access to Pod and Service networking, cluster DNS, and more.
